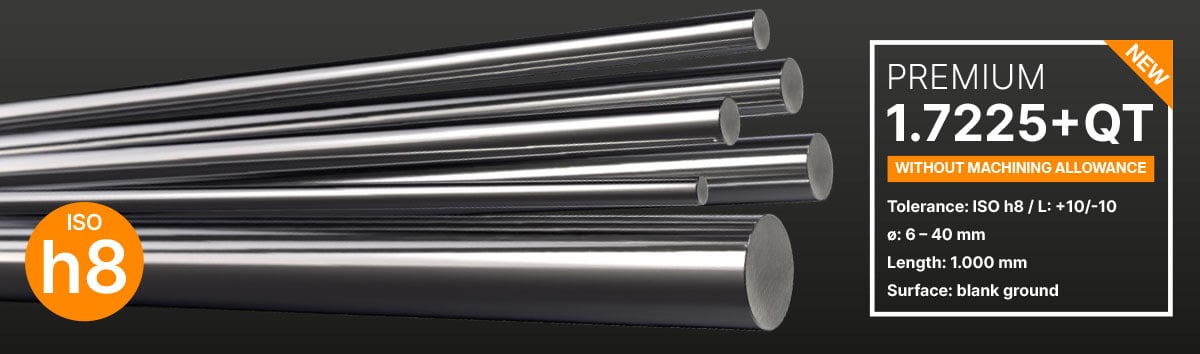

1.7225 +QT Round tempered & ground ISO h8
13 new dimensions
You have asked - we deliver!
More and more customers have expressed a desire to purchase 1.7225 +QT round bar directly in a precision-ground quality in order to reduce in-house machining and optimise processes.
That why we have expanded our portfolio: The proven 1.7225 +QT (42CrMo4 + QT) is available immediately in 13 new round bar dimensions – ground to ISO h8, without machining allowance and already tempered.
New dimensions – drawn / ground to ISO h8
Immediately available -
Directly from stock
Diameters from
6 to 40 mm
Ø Blank
ground surface
WITHOUT
machining allowance
ISO h8
tolerance
Length 1.000 mm
Length tolerance +10/-10 mm
Please order online here - 1.7225 QT round without extra charge - length 1,000 mm - ISO h8
1.7225 +QT Round immediately usable - without a heat treatment
What does +QT mean?
QT stands for “Quenched and Tempered” after heat treatment. During the heat treatment the 1.7225 is heated to austenitising temperature and then rapidly cooled.
The material is then tempered to achieve the desired properties. Tempering produces a fine-grained and homogeneous microstructure, high strength and high toughness. This is how the specific 1.7225+QT is produced.
Advantages of tempered & bright ground 1.7225+QT round
- No additional heat treatment required
- Immediate further processing possible
- Very high accuracy of fit
- Time and cost savings
- Reduced processing steps in your own production
- Economically efficient
- Precision guaranteed
- High material reliability thanks to consistent properties
What does “drawn / ground in h8 without machining allowance” mean?
Unlike conventional round material with added allowance, these round steel bars are already precisely drawn and ground to the final dimensions required by ISO tolerance class h8. This ensures very tight tolerances and further improves the surface finish.
For ground round steel, the ISO tolerance class describes specific quality characteristics and tolerances. ISO h8 is a shaft tolerance standard:
- The ‘h’ denotes the basic tolerance (always below the nominal dimension).
- The number ‘8’ indicates the tolerance grade (IT tolerance grade, International Tolerance).
This means that these round bars can be used directly for precise fits – without prior turning or grinding.
This saves time, reduces costs and increases process reliability.
Your time and cost advantage with the 1.7225+QT h8
The new 1.7225 +QT, bright ground to ISO h8, eliminates two complete processing steps:
NO HEAT TREATMENT NECESSARY
material is fully tempered
NO MORE MACHINING REQUIRED
thanks to dimensional accuracy in accordance with ISO h8
The result:
greater
efficiency.
less
effort.
Maximale
Prozesssicherheit.
Advice &
direct contact
Would you like some non-binding advice or an individual quote?
Our team is ready to help – fast, competent and solution-oriented.
